In logistics hubs, manufacturing plants, and cold chain loading docks, high-frequency transit zones represent the ultimate stress test for PVC strip curtains. These areas endure relentless waves of forklifts, pallet jacks, and personnel. Without proper specification, standard PVC curtains in such environments quickly succumb to edge tearing, clouding, permanent deformation, and detachment. Frequent replacements not only inflate procurement budgets but also create gaps that allow massive air exchange, driving up HVAC costs. The solution is not simply to buy "thicker" strips; it requires a systematic, multi-layered optimization strategy that addresses material science, mechanical engineering, and operational management.
Before implementing any upgrades, facility managers must conduct a granular audit of the transit zone.
Traffic Profile: Is the traffic primarily manual trolleys, electric forklifts, or pedestrian? What is the frequency? Exceeding 100 passages per day typically moves a doorway into the "high-traffic" category.
Impact Mechanics: Are there sharp tines, protruding pallet corners, or high-velocity approaches that repeatedly strike the strips?
Environmental Extremes: Is the area exposed to sub-zero temperatures (e.g., -20°C freezers), high heat, strong crosswinds, or aggressive chemical washdowns?
Only by pinpointing the primary failure mechanism—be it physical impact, thermal shock, or chemical corrosion—can the optimization strategy be targeted effectively.
The first line of defense is upgrading the physical properties of the PVC strips themselves.
Gauge Adjustment: Transitioning from standard 1.0mm–1.5mm strips to heavy-duty 2.0mm–3.0mm variants significantly increases tensile strength and tear resistance. The added mass helps the strip return to its vertical resting position more quickly after being displaced.

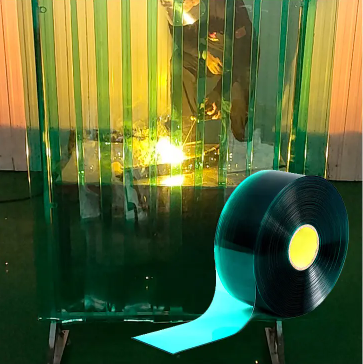

Specialized Formulations: For cold storage, "Polar Grade" PVC is non-negotiable. It retains flexibility at -40°C, preventing the brittle fractures common with standard compounds in freezing conditions. Conversely, for high-heat zones or welding shops, high-temperature resistant or tinted (welding-grade) PVC prevents softening and protects against UV/arc flash damage.
Surface Reinforcement: Installing "ribbed" or "corrugated" strips in the direct path of traffic can be highly effective. The raised ribs prevent the strips from sticking together in windy conditions and distribute the mechanical stress of impact across a wider surface area, reducing the risk of edge splitting.
Even the best material will fail prematurely if the supporting structure is inadequate.
Overlap Ratio: In high-traffic zones, increasing the horizontal overlap from the standard 50mm to 100mm (or more) is critical. This ensures that even if a strip is pushed far out of alignment by a passing forklift, the adjacent strips still maintain a seal, reducing air infiltration and minimizing the "flapping" that causes material fatigue.
Heavy-Duty Hardware: Lightweight aluminum tracks and S-hooks are insufficient. Upgrading to heavy-duty galvanized steel or stainless-steel enclosed roller tracks provides the necessary backbone. These systems secure the strips firmly, preventing them from being ripped out of the track during high-speed impacts.
Modular Zoning: A highly effective strategy for loading docks is to create a "modular center zone." The strips in the direct path of the forklift are mounted on a separate, easily removable track section. If these central strips are damaged, they can be swapped out in minutes without dismantling the entire curtain system. This minimizes downtime and reduces long-term maintenance costs.
In ultra-high-frequency areas, combining PVC curtains with other technologies can drastically extend service life.
Impact Absorption: Installing flexible bollards or guard rails on either side of the doorway protects the curtain from runaway pallets or wide loads. Adding weighted bottom bars or brush seals helps the strips resist wind suction and negative air pressure, keeping them stable.
Hybrid Door Systems: For docks with constant traffic, installing a high-speed rigid or roll-up door behind or in front of the PVC curtain can be a game-changer. The automated door handles the bulk of the physical barrier duty, opening and closing rapidly, while the PVC curtain remains a static thermal break. This shields the PVC from the majority of direct impacts, extending its life by years.
The most robust hardware cannot compensate for poor operational habits.
Routine Inspections: Implementing a weekly checklist to inspect for loose brackets, cracked strips, or excessive cloudiness ensures that minor issues are addressed before they escalate. A small tear, if ignored, will quickly propagate into a full split.
Cleaning Regimens: Accumulated grease, dust, and chemical residues can degrade the PVC surface. Regular cleaning with mild detergent not only maintains transparency (crucial for safety) but also prevents the material from becoming brittle due to chemical attack.
Operator Training: The human factor is often the biggest variable. Training forklift drivers to slow down when approaching curtains and to avoid "spearing" the edges with forks can double the life of the installation. Encouraging a culture of "if you break it, you report it" ensures that damaged strips are replaced promptly, maintaining the integrity of the barrier.
Optimizing the durability of standard PVC strip curtains in high-traffic areas is a science of "soft and hard" integration. It goes beyond simply purchasing thicker materials; it is a systematic project involving precise condition analysis, structural modification, hardware upgrading, and personnel management. By implementing a rational optimization strategy, companies can extend the average service life of their curtains by 30% to 50%, while simultaneously maintaining optimal temperature and humidity balance and reducing energy consumption. In high-frequency industrial environments, a well-optimized PVC curtain system is not just a partition—it is a hidden moat for cost reduction, efficiency improvement, and operational safety.
