When sourcing PVC strip curtains, many procurement managers and facility engineers face a critical choice: should they opt for "Industrial-Grade" or "Standard-Grade"? While both may look similar—transparent, flexible, and easy to install—their performance, durability, and safety profiles are worlds apart. Standard-grade curtains are typically designed for retail entrances, residential garages, or office partitions. Industrial-grade curtains, however, are engineered for the punishing realities of manufacturing floors, cold storage logistics, and food processing plants. Understanding these distinctions is vital to prevent premature failure, ensure workplace safety, and optimize total cost of ownership (TCO).
 |  |
The most fundamental difference lies in the chemical formulation of the PVC compound.
Standard-Grade PVC: Typically manufactured using general-purpose PVC resins with basic plasticizers. These formulations prioritize clarity and flexibility for light-duty use. They often lack advanced stabilizers, meaning they degrade faster when exposed to UV light, fluctuating temperatures, or industrial cleaning agents. The thickness usually ranges from 1.0mm to 1.5mm, making them lightweight but vulnerable to tearing.
Industrial-Grade PVC: This grade utilizes high-molecular-weight PVC resins blended with sophisticated additive packages.
Plasticizer Stability: Industrial formulations use high-quality, non-toxic plasticizers (often DINP or DOTP) that resist migration, preventing the curtain from becoming brittle over time.
Thermal Modifiers: For cold storage, "Polar Grade" additives ensure the PVC remains flexible at temperatures as low as -40°C.
UV and Chemical Resistance: Inhibitors are added to prevent yellowing and cracking under harsh lighting or chemical exposure.
Thickness: Ranging from 2.0mm to 4.0mm, these curtains possess significantly higher tensile strength. Many feature a "ribbed" or "corrugated" surface design; these ribs prevent the strips from sticking together in windy conditions and distribute the mechanical stress of impacts, drastically extending service life.
In a commercial setting, a curtain might be brushed against by a shopping cart a few dozen times a day. In an industrial setting, it faces forklifts, pallet jacks, and heavy machinery hundreds of times per shift.
Standard-Grade Performance: Under high-frequency impact, standard strips quickly develop stress fractures along the edges. They tend to "memory curl"—remaining bent or twisted after being struck—which creates permanent gaps that destroy the thermal barrier. In cold environments, they become stiff and shatter upon impact.
Industrial-Grade Resilience: Engineered for high resilience, industrial strips are designed to absorb kinetic energy. Even when struck at speed by a forklift tine, the material flexes rather than breaks. Crucially, it exhibits excellent "recovery"—springing back to its original overlapping position immediately after the obstruction passes. This ensures a continuous seal against airflow. Some heavy-duty variants include reinforced edges or weighted bottoms to counteract wind suction or negative air pressure common in facilities with powerful exhaust systems.
Standard-grade curtains are essentially "one-size-fits-all," offering basic visual barriers. Industrial-grade curtains, conversely, are highly specialized to mitigate specific industrial hazards.
Anti-Static (ESD-Safe): For electronics manufacturing or explosive atmospheres, industrial curtains are infused with carbon fibers to dissipate static electricity (surface resistance controlled between 10^6 to 10^9 ohms), preventing damage to sensitive components or sparking risks.
Anti-Insect (Amber Tint): Food processing plants often use amber or orange-tinted PVC. The specific wavelength of light transmitted through these curtains is known to deter flying insects, adding a layer of pest control.
Welding Grade: Dark-tinted or green-tinted curtains with UV filters protect nearby workers from harmful arc flashes and sparks without compromising the welder's visibility.
Food Grade: Compliant with FDA and EU food contact regulations, these curtains are free from phthalates, cadmium, and lead, ensuring no toxic migration onto food products or preparation surfaces.
A chain is only as strong as its weakest link, and in curtain installations, the hardware is often the failure point.

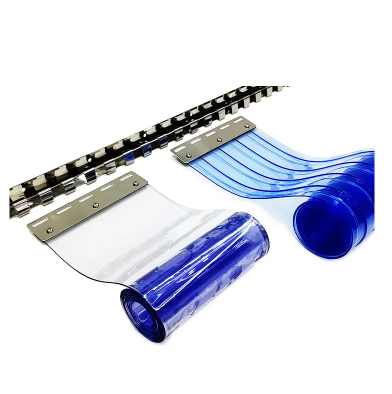

Standard-Grade Hardware: Typically consists of lightweight aluminum or plastic rails with simple "S-hooks" or push-in studs. While easy to install, these systems struggle to support the weight of thicker industrial strips. Under vibration or repeated impact, the rails can bend, and hooks can detach, leading to sagging curtains and safety hazards.
Industrial-Grade Hardware: Built for longevity, these systems utilize heavy-duty galvanized steel or stainless-steel tracks. They feature robust suspension brackets designed to anchor firmly into concrete or steel lintels. The connection points often involve secure plate mounts or enclosed roller systems that prevent the strips from being ripped out of the track by high-speed traffic. This structural integrity ensures the curtain remains aligned and effective for years.
In regulated industries, documentation is as important as physical performance.
Standard-Grade: Rarely comes with formal certifications. If used in a food plant or chemical lab, it may fail safety audits due to unknown chemical compositions or flammability risks.
Industrial-Grade: Reputable manufacturers provide comprehensive documentation, including:
Flame Retardant Performance: Available with fire-resistant formulations that meet recognized standards such as DIN 4102 B1 or NFPA 701, helping reduce flame propagation and improve safety by limiting continued burning after the ignition source is removed.
Food Contact Compliance: Available with food-grade formulations supported by compliance documentation according to applicable food contact regulations, including FDA requirements and EU Regulation 10/2011 for plastic materials intended for food contact.
RoHS Compliance: Certifying the absence of hazardous heavy metals.
Low Smoke Zero Halogen (LSZH): For underground or enclosed spaces, ensuring minimal toxic smoke emission in case of fire.
The initial purchase price is only one part of the equation. TCO considers maintenance, energy savings, and replacement frequency.
Standard-Grade Economics: While the upfront cost is low (often 25–50% of industrial grade), the replacement cycle is short. In a busy warehouse, standard strips may need replacing every 6–12 months. Their poor sealing leads to higher HVAC energy consumption. When you factor in the labor cost of frequent replacements and the productivity loss due to temperature fluctuations, the "cheap" option becomes expensive.
Industrial-Grade Economics: Although the initial investment is higher, the ROI is compelling. Industrial curtains typically last 3–5 years in harsh environments. Their superior sealing properties can reduce HVAC energy consumption by 15%–40%, translating to thousands of dollars in annual savings. Fewer replacements mean less maintenance labor and less downtime. For a facility manager, industrial-grade curtains are not an expense; they are a long-term investment in efficiency and safety.
In summary, Standard-Grade PVC curtains answer the question of "Is there a barrier?" They suffice for light-duty, low-risk environments where aesthetics and basic separation are the primary concerns.
Industrial-Grade PVC curtains answer the question of "Can we rely on this barrier?" They are engineered for high-risk, high-traffic environments where safety, hygiene, thermal efficiency, and durability are mission-critical.
When specifying curtains for your facility—be it a freezer, a loading dock, a cleanroom, or a production floor—always match the grade to the operational reality. Investing in industrial-grade PVC strip curtains is not merely buying a partition; it is purchasing peace of mind, protecting your assets, and safeguarding your bottom line. Welcome to our website to know more information about our products www.pvccurtain.com
